Tutorial:Tips and tricks - Wikitext

This page contains a tutorial on the wikitext used in the Statistics Explained articles with the 'new look'

Tags for graphs

Put graphs and figures beside each other

Another possibility

<gallery widths="400px" heights="400px" > Image:LUCAS - Land cover update.png|'''LUCAS - Land cover''' Image:LUCAS-Land use.PNG|'''LUCAS - Land use''' </gallery>

see LUCAS - Land use and land cover survey

Tags for Vislet

VISLETS SHOULD NO LONGER BE USED AS THEY ARE NOT ACCESSIBILITY FRIENDLY.

Instead, use "Embed" tags (see below) if possible. Otherwise use a static image and include a link to the web page that contains the respective tool.

Tags for inserting image with video

Example: Beginners:population

Tags for embedding infographics

Use the following tags:

For the URL, use the "Embed this visualisation" icon from the source infographic

Example:

Asylum quarterly report

Tags for embedding infographics - with full screen option

<embedgraph src="https://w55eqjjl18qxjleljel93y1qel9-s-a2157.bj.tsgdht.cn/assets/estat/E/E4/gisco/website/stat_expl/population_grid/grid_maps/main_map.html" allow="fullscreen" allowfullscreen="true" frameborder="0" height="630px" width="900px"></embedgraph> Example: Population and housing census 2021 - population grids

Tags for inserting interactive maps

All interactive Maps for SE should be sent to ESTAT WEB CONTENT for upload so that a link can be created in the SE cache. Please indicate the topic (not just map title). Make sure the map is exported as html in px and not in pt.

Please note that, at the request of the internet team, a separate cache link should be made for maps to be used in news items and SE articles (i.e. the link for a map that has been created for a news item should not be used in SE, a new link should be requested; this is so that the internet team can keep their inventory correct).

Make sure that the filename of the map is in line with DG COMM rules, i.e. no “and” in the URL, use hyphens instead spaces.

Here the rules DG COMM URL rules

Rules

According to Europa domain and subdomain rules, websites owned by DGs and executive agencies must be hosted on the europa.eu domain.

As part of the Europa.eu domain, the websites’ URLs must follow these rules:

URLs must always be lower case (to avoid incompatibility between Unix and Windows, respectively case-sensitive and case-insensitive)
URLs must always be in English, even when they contain a page in another language (see also Language indicator)
multiple words contained in a URL must be separated by a dash/hyphen (-), though the underscore (_) is also accepted
URLs must not contain chained multiple words (e. g. europeancommission is wrong, european-commission is correct)
URLs must not contain acronyms, as they are not understood by a broader audience. Exceptions can only be granted for existing URLs already approved in the past.

If in the StatExp cache:

<interactivemap width="70%" src="social/use-of-the-internet-for-purchasing-cultural-goods-and-services.html"|alt= add alternative text.></interactivemap>
To include title and source data:
:::Electrified railway lines, 2023 (% of total length of railway lines)<br>''Source:'' Eurostat ([https://ec.europa.eu/eurostat/databrowser/view/rail_if_line_tr/default/table?lang=en rail_if_line_tr])

If not in StatExp cache (although this should not be the case; see above explanation):

<interactivemap width="70%" override="true" src="https://ejel93y1qel9-s-a2157.bj.tsgdht.cn/eurostat/cache/news/maps/motorway-density-2020.html"></interactivemap> Examples:

Two graphs side by side

<gallery widths="400px" heights="400px" > Image:Healthcare personnel in the EU.jpg|'''Healthcare personnel in the EU''' Image:Self-perceived health 2015.jpg|'''Self-perceived health''' </gallery>

Example:

SDG 1 - No poverty

Tags for no "Highlight" section

All the tags for the new look page can be found here : New look tags

For articles without a 'Highlight' section (background art. mostly)

Example: Integrated government finance statistics presentation

Dynamic chart - tips for preparing excel files

Do not use an apostrophe in the excel file name; also applies for & and , .
Do not use an apostrophe in the title of the chart; also applies for &.
If you use a tab separator (eg blank space for thousands), it can lead to data not being included in the graph.
After updating/re-uploading a dynamic chart - if values do not change accordingly (both when logged in and logged out), try using the "clear cache" option.

Dynamic chart - ascending order

Dynamic charts are automatically sorted in descending order.

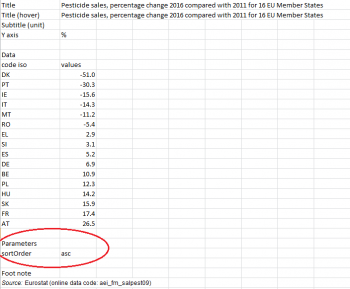

To create a dynamic chart in ascending order, insert the parameters in the excel file:

Heading: Parameters

Data column: sortOrder

Values column: asc

Example:
Article - Agri-environmental indicator - consumption of pesticides
Excel file - File:Agri-environmental indicator - consumption of pesticides.xlsx

Tags for inserting coloured text boxes

To centre boxes:
<div class="alert alert-th1" style="width:80%;margin-left:auto;margin-right:auto;"> Text </div> Theme number should be changed accordingly

Example: Archive:Intra-EU - most traded goods

TestBox

Renaming articles in Top 100 list

You can directly edit Statexp:Top100 page

StatExp:Top100

Tweets and subscript

If the closing tweet tag </tweet> is not on the same line as the sentence it distorts the subscript (makes it superscript).

See: Greenhouse gas emission statistics - carbon footprints

Tags for PDF page break

See: Permanent agricultural grassland in Europe

Tags for alternative text

For each image in an article, alternative text should be added after the image description, preceded by |alt=
It should be a short description to include: type of chart, subject of chart, reference period and what the chart shows. Examples of alternative text tags

[[Image:Electricity_prices_for_household_consumers,_first_half_2022_LB.png|thumb|centre|500px|Figure 1: Electricity prices for household consumers, first half 2022<br>(€ per kWh)<br>''Source:'' Eurostat {{Stable link|title=|code=nrg_pc_204}}|alt=Vertical stacked bar chart on the electricity prices for household consumers in the first half 2022 in the EU, the euro area, EU Member States and some of the EFTA countries, candidate countries, potential candidates and other countries. Each bar shows the three components of the price, which are the price without taxes, the VAT, and other taxes.]] [[Image:Development_of_electricity_prices_for_household_consumers,_EU,_2008-2022_(EUR_per_kWh).png|thumb|centre|500px|Figure 2: Development of electricity prices for household consumers, 2008-2022<br>(€ per kWh)<br>''Source:'' Eurostat {{Stable link|title=|code=nrg_pc_204}}|alt=Line chart with four lines showing the development of electricity prices for household consumers in the EU from the first half of 2008 to the first half of 2022. The lines show the following four different prices: prices including taxes, prices excluding taxes, the prices of the first half of 2008 including taxes adjusted for inflation, and the prices of the first half of 2008 excluding taxes adjusted for inflation.]] See:

When adding alternative text to dynamic graphs, use codes as follows:

<multibarchart theme="7" file="Modal split of freight transport_2011-2021.xlsx">|alt= Dynamic interactive vertical bar chart showing the modal split of freight transport in the EU in percentages based on tonne-kilometres. Each year of the decade from 2011 to 2021 is shown with five columns comparing the five transport modes: maritime, road, rail, inland waterways and air freight transport.</multibarchart>

See: Freight transport statistics - modal split

Adding category page

[[:Category:Employment|All articles on employment]]

Example: Actual and usual hours of work in section "Direct access to " under "Other articles".

Adding copyright tags

Upload image and in the uploaded picture page, edit and insert the following:

For copyright symbol use the symbol for "ampersand" then write "copy" then symbol for "semi-colon" (no spaces) or copy/paste.

The copyright notice will only appear underneath the image. However, it will be visible over the image in the revamped SE main page.

Example: Pcalapre AdobeStock 141235223 RV.jpg

Tags for inserting graph from VISTOOL

<vistool>
<script>{ "utility": "wcloud", "url": "https://e93y1qel9-s-a2157.bj.tsgdht.cn/assets/wcloud/widgets/202403/90f1eee0-eab9-11ee-b54d-4be957c965a6/uec.json" }</script> <caption>Figure 1: Total and COVID-19 mortality, 2020 and 2021 (Number for 21 EU countries)</caption>
</vistool>

see Causes of death - monthly statistics
